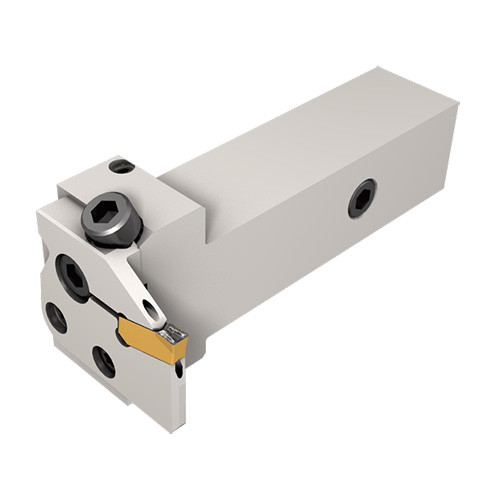

MAHPL 25-JHP-MCG
Holders with multiple inlets for high-pressure coolant channels for MODULAR-GRIP perpendicularly mounted adapters.
Specifikacije proizvoda

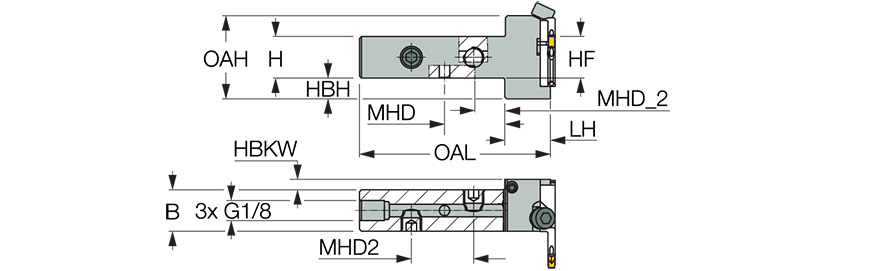

| Shank Height (H) | 25 mm | Tool Type | Square Shanks |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Head Length (LH) | 22 mm | Head Bottom Offset Height (HBH) | 5 mm |
| Overall Length (OAL) | 107 mm | Unit | M |
| Body Material | Steel |
Značajke proizvoda
| FamilyDesc | Holders with multiple inlets for high-pressure coolant channels for MODULAR-GRIP perpendicularly mounted adapters. | FamilyName | MAHPR/L-JHP-MCG |
| Remarks | For CDX, refer to the adapter's data. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.5930
Name
Groove/Turn Indexable Holders
FamilyName
MAHPR/L-JHP-MCG
BrandName
Iscar
