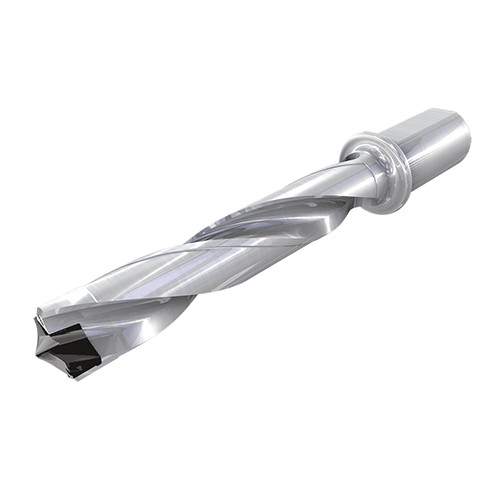

DFN 340-102-32A-3D-IQ
Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 3xD
Specifikacije proizvoda

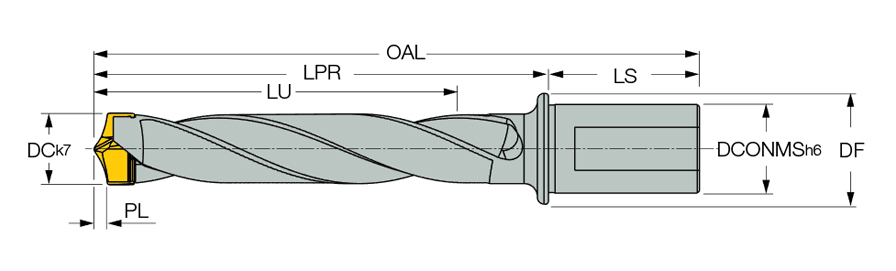

| Cutting Diameter (DC) | 34 mm | Overall Length (OAL) | 201.2 mm |
| Usable Length (LU) | 102 mm | Shank Length (LS) | 60 mm |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Bušenje | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | HFP 340 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 7.62 mm |
| Insert Seat Size Code (SSC) | 34.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 34 mm | Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 34.93 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Protruding Length (LPR) | 141.2 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 133.58 mm | Unit | M |
Značajke proizvoda
| FamilyDesc | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
PackageWeight
1.0820
Related Documentation

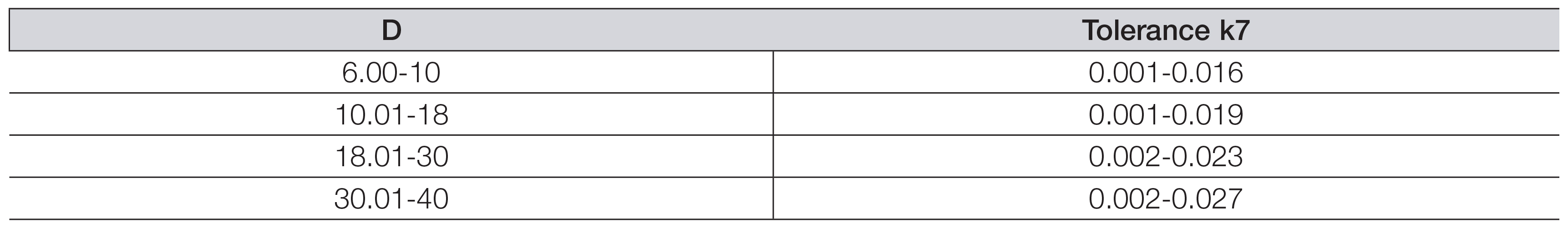

Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
