Specifikacije proizvoda

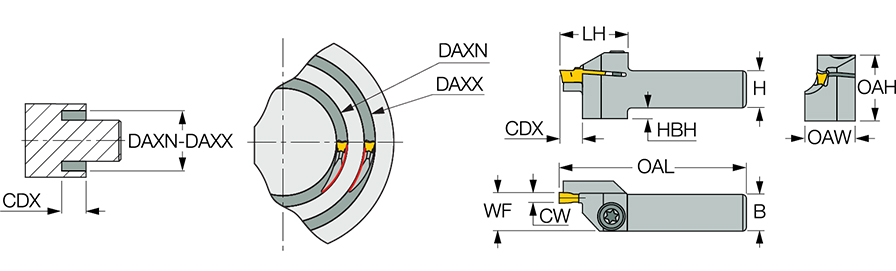

| Shank Width (B) | 1″ | Overall Length (OAL) | 5″ |
| Shank Height (H) | 1″ | Application | | Čeono Urez. Uzduž Vratila | Čeono Urezivanje | Čeono Urezivanje i Tokarenje | |
| Cutting Depth Maximum (CDX) | 0.236″ | Head Length (LH) | 3/4″ |
| Cutting Width (CW) | 0.118″ | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 0.126″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.118″ | Functional Width (WF) | 1″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Axial Groove Outside Diameter Maximum (DAXX) | 0.63″ | Unit | I |
| Axial Groove Outside Diameter Minimum (DAXN) | 0.47″ |
Značajke proizvoda
| FamilyDesc | Integral holders for face grooving and turning | FamilyName | HGHR/L-3 |
| Remarks | For insert clamping instructions and for widening limitations, click on More Info HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
1.3625
Name

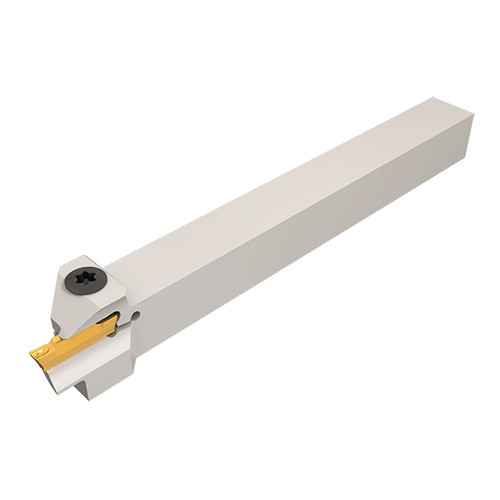

Face Groove/Turn Indexable Holders
FamilyName
HGHR/L-3
BrandName
Iscar
Related Documentation

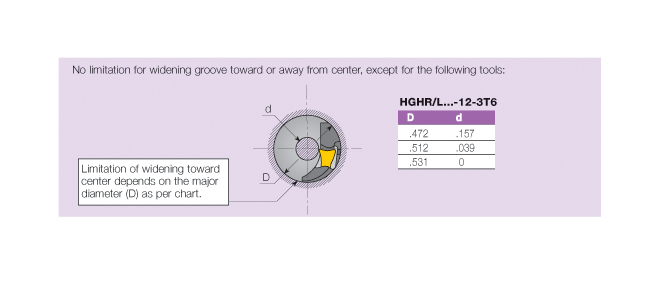

No limitation for widening groove toward or away from center,except for the following tools.
