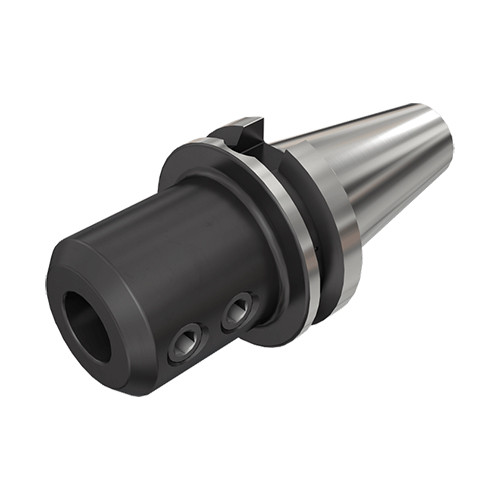

BT30 EM 12X 60

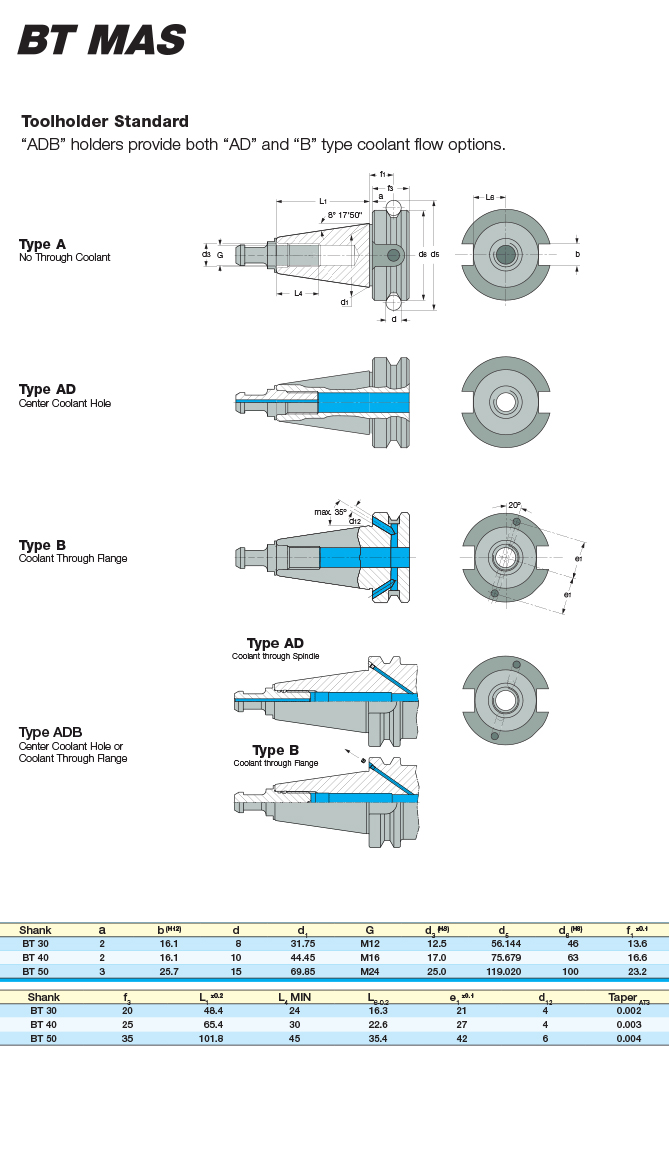

DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 ADB tapered shanks
Specifikacije proizvoda

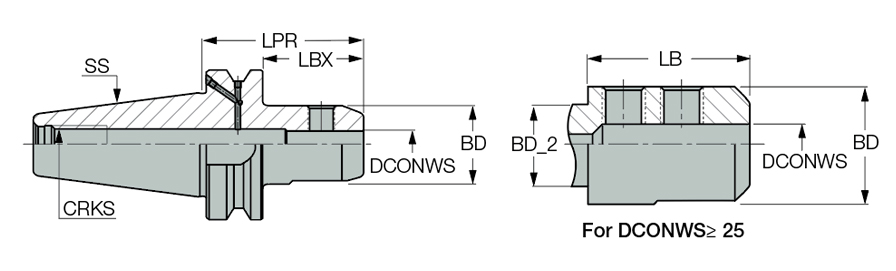

| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Shank Size (SS) | 30 |
| Body Diameter (BD) | 42 mm | Tool Type | BT |
| Protruding Length (LPR) | 60 mm | Body Material | Steel |
| Overall Length (OAL) | 108.4 mm | Connection Code Machine Side (CCMS) | BT |
| Measurement Type | Metric | Unit | M |
Značajke proizvoda
| FamilyDesc | DIN6359 / DIN 1835 form B Weldon endmill holders with BT MAS-403 ADB tapered shanks | FamilyName | BT-EM (DIN 1835 Form B) |
| COO | Italy | BrandName | Iscar |
Shipping Info
PackageWeight
0.7550
Name
End Mill Holders
FamilyName
BT-EM (DIN 1835 Form B)
BrandName
Iscar
