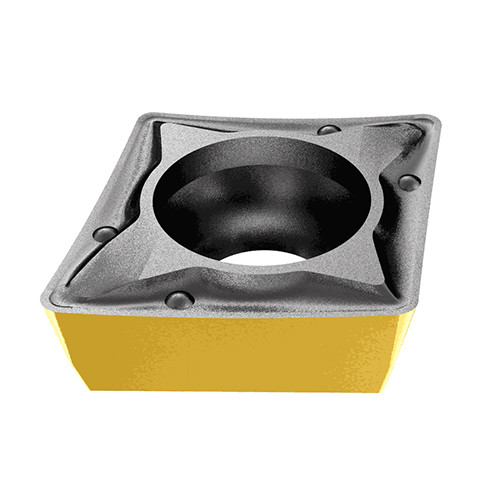

CPMT 060208-PF IC807
80° rhombic inserts with 11° positive flank for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
Specifikacije proizvoda
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Unut. 80° romb, 95° Položaj | Vanj. 80° romb, 95° Položaj | | Min D.O.C. | 0.5 mm |

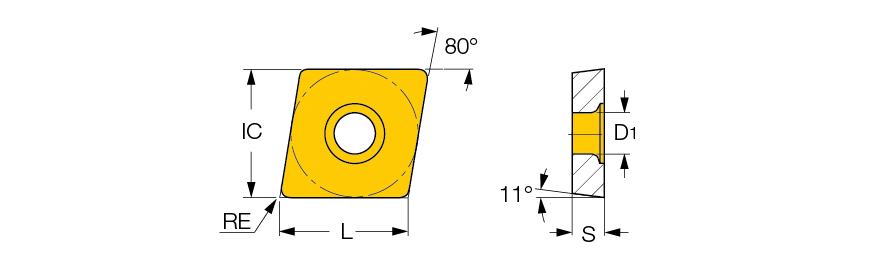

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Insert Size | 2-2-PF | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Cutting Edge Length (L) | 6.3 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Chip Breaker Type | PF |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 | Unit | M |
| Fixing Hole Diameter (D1) | 2.8 mm |
Značajke proizvoda
| FamilyDesc | 80° rhombic inserts with 11° positive flank for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | FamilyName | CPMT-PF |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0022
Name
Turning Indexable Inserts
FamilyName
CPMT-PF
BrandName
Iscar
