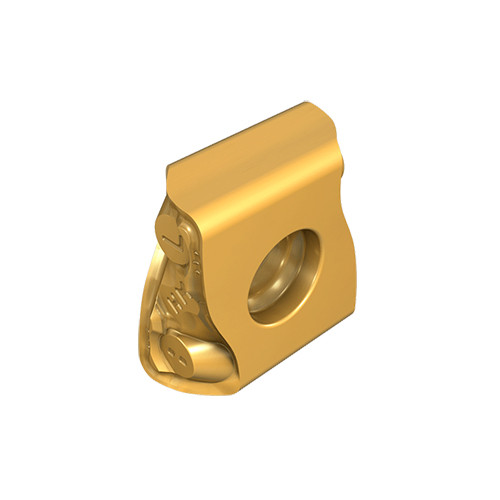

LNMX 110412L-HM IC8250
Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel.
Specifikacije proizvoda

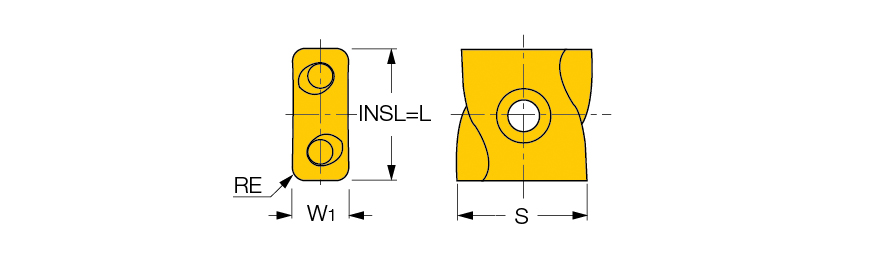

| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 1 mm |
| Application | | Unut. Tangencijalni 93° Položaj | Vanj. Tangencijalni 93° Položaj | Vanj. Tangencijalni 93°Čeoni Položaj | | Depth of Cut Maximum (APMX) | 5 mm |
| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 110412 | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 11 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 11.4 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | HM |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Metric |
| Grade | IC8250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Unit | M |
Značajke proizvoda
| FamilyDesc | Tangential inserts with 4 cutting edges and a positive rake angle. Recommended for high machining rates on stainless steel, high temperature alloys and soft, low carbon steel. | FamilyName | LNMX-HM |
| COO | Israel | BrandName | Iscar |
Shipping Info
PackageWeight
0.1385
Name
Turning Indexable Inserts
FamilyName
LNMX-HM
BrandName
Iscar
