Specifikacije proizvoda
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Unut. 80° Trigon 95° Položaj | Vanj. 80° Trigon 95° Položaj | | Min D.O.C. | 1 mm |
| Insert Style | WNMG | Depth of Cut Maximum (APMX) | 3.5 mm |

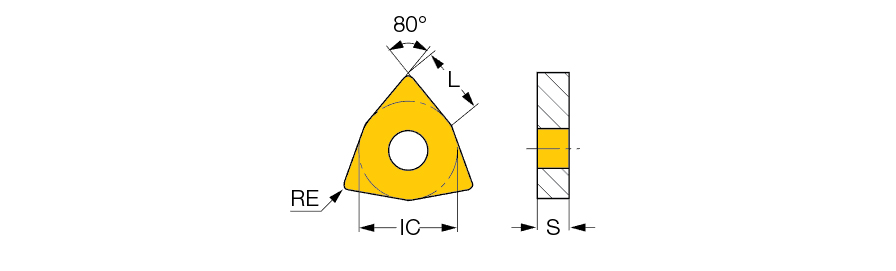

| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Size | 080408 | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Cutting Edge Length (L) | 8.7 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | WG |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC520N |
Značajke proizvoda
| FamilyDesc | Double-sided trigon wiper inserts for high surface finish at high feed turning (0.3 to 0.6 mm/rev). Three to five times better surface finish compared to standard turning inserts at the same feeds. | FamilyName | WNMG-WG |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0061
Name
Turning Indexable Inserts
FamilyName
WNMG-WG
BrandName
Iscar
