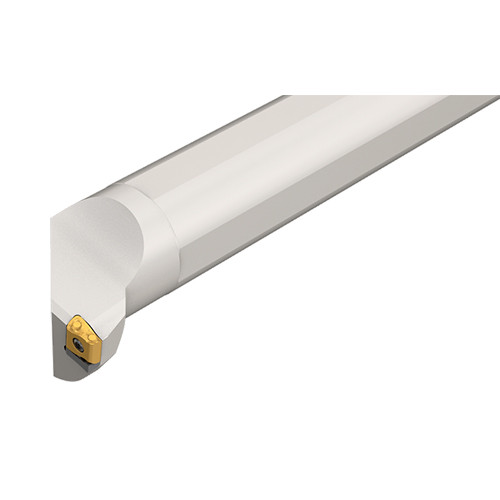

S-SLANR 20-11 TANG
Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates.
Specifikacije proizvoda
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 14″ | Application | | Unut. Tangencijalni 93° Položaj | |
| Reduced Body Diameter Length (LDRED) | 1.97″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.171″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.87″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | LNMX 1104.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2.087″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Značajke proizvoda
| FamilyDesc | Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates. | FamilyName | S-SLANR/L-TANG |
| Remarks | Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
4.9317
Name
Indexable Internal Turning Tools
FamilyName
S-SLANR/L-TANG
BrandName
Iscar
