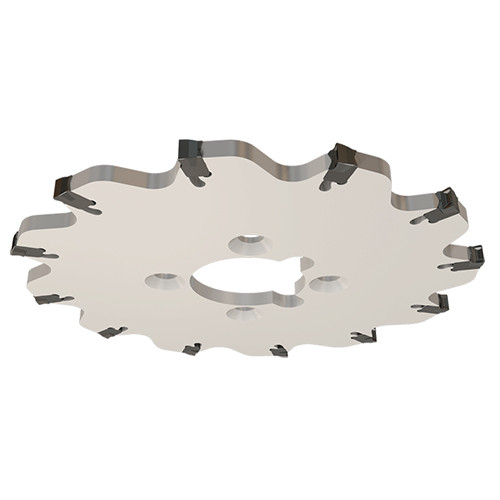

SGSA 40-3-6K
Slitting cutters Carrying GSAN self-clamped inserts.
Specifikacije proizvoda

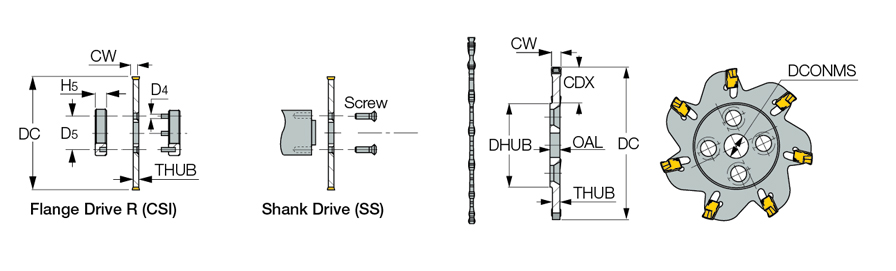

| Cutting Diameter (DC) | 40 mm | Master Insert Identification (MIID) | GSAN 3 |
| Cutting Item Count (CICT) | 5 | Application | | Bočni Utori | Pilasto | T Utori | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Rotational Speed Maximum (RPMX) | 2000 Rev/min |
| Cutting Depth Maximum (CDX) | 8 mm | Tool Type | Slitting cutters |
| Hub Diameter (DHUB) | 21 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 2.4 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 3.53 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 2.7 mm | Unit | M |
Značajke proizvoda
| FamilyDesc | Slitting cutters Carrying GSAN self-clamped inserts. | FamilyName | SGSA |
| Remarks | For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded | BrandName | Iscar |
| COO | Israel |
Shipping Info
PackageWeight
0.0920
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
SGSA
BrandName
Iscar
